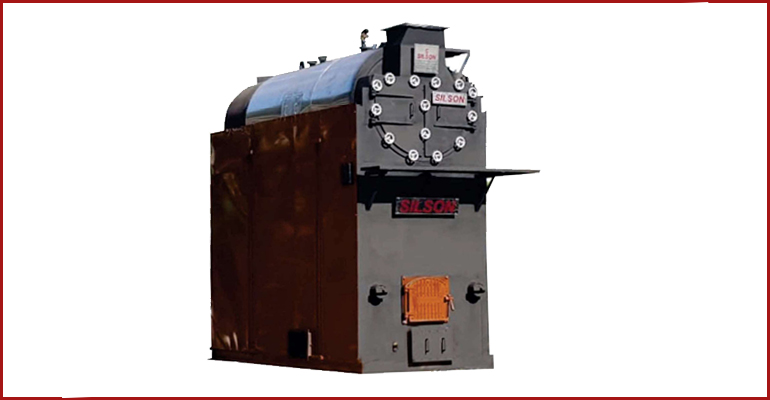

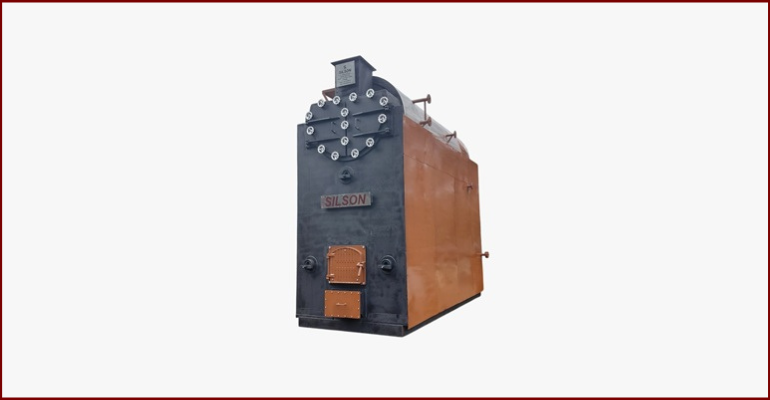

Combopack Boilers

FUEL: Auto & Manual

DESIGNED FOR: All types of fuel like Coal, Wood, Husk, Briquette, Agro-waste, etc.

CAPACITY: 2000-6000 kg/hr.

PRESSURE: 10.54, 15, & 17.5 kg/cm².

SALIENT FEATURES:

  • Can be used for Saturated Steam.
  • Combustion ensures High Efficiency (up to 78%).
  • Water panelled combustion chamber offers high combustion efficiency.
  • Radiation provided in the furnace offers faster & consistent steam generation.
  • Can be designed for Grate Bar to achieve uniform & complete combustion.
  • Top Drum & Bottom Membrane Panel, with convective Tubes assembly offers faster steam generation and consistent quality, flow & steam pressure.
  • Consists of VFD control feeding system and all drives (ID & FD Fans) for proper regulation of fuel depending on Load.
  • Consists of Pumps with High Efficiency.
  • Optimum Steam Space is provided with a unique steam separator to generate dry steam.
  • The option of 'Multi-fuel' ensures flexibility towards the usage of any fuel, available with Traveling Grate, Reciprocating Grate, and Pneumatic Feeding Arrangement.
  • Ensures longer life of the component.
